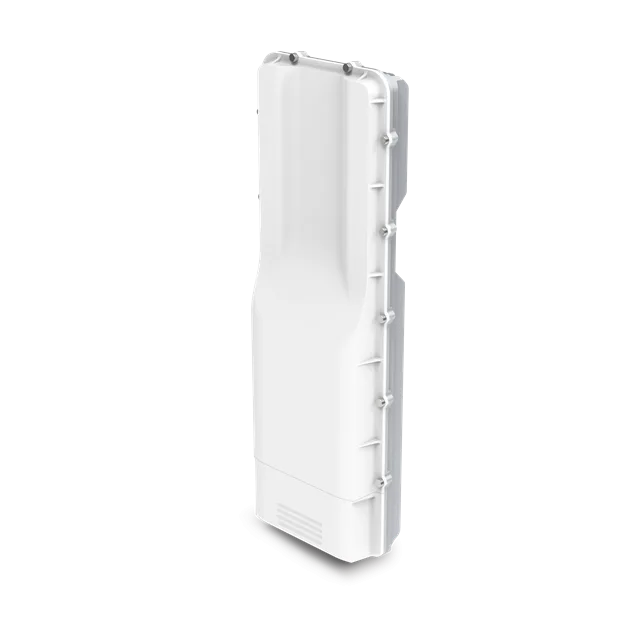

Tachyon TNA-301

Quick Install 60 GHz PTP + PTMP Access Point

Price on request · project & reseller pricing available

The TNA-301 is an industry-leading 60 GHz mmWave access point for point-to-point and point-to-multipoint networks in the worldwide unlicensed 57-71 GHz band.

Its 3-D beamforming antenna steers ±60° in azimuth and ±25° in elevation, so client radios need little to no aiming - install links in minutes instead of hours.

A 2.5 Gbps Ethernet port enables full speeds of up to 2.3 Gbps single-direction, and each sector supports up to 32 TNA-302 or other TNA clients for dense deployments with a range of 1 km+.

Request a quote Ask on WhatsApp

Genuine product with manufacturer warranty
Delivery across UAE, GCC & Africa
Free 60 GHz link planning & support

TNA-301 key features

3-D beamforming

100% beamforming antenna that needs little to no aiming and handles clients on different heights, taller buildings and terrain reflections.

2.3 Gbps+ throughput

Designed to maximise single-direction throughput for asymmetrical applications, with a 2.5G Ethernet port to deliver full speed.

32 clients per AP

Up to 32 stations per access point with dynamic TDMA scheduling - more than most competing 60 GHz radios.

Full 60 GHz band

Supports 57-71 GHz including channels 5 and 6, where lower oxygen absorption allows longer links. Full (2 GHz) or half (1 GHz) channels.

Anyband failover

The 1G port can be configured as an 'anyband' failover to an external radio, keeping the link up during heavy rain.

Easy management

Modern web UI, SNMP v2/v3 with traps and a RESTful API. No external controller or server required.

TNA-301 specifications

Radio

Default mode: Access Point (AP / station selectable in software)
Frequency: 57-71 GHz full band, channels 1-6 (half channels 1-11)
Channel size: 2 GHz (full) or 1 GHz (half)
Max clients: 32 stations per access point
EIRP: 40 dBm (20 dBm TX power + 20 dBi antenna)
Antenna: 20 dBi phased array, ±60° azimuth, ±25° elevation steering
Beam size: 23° az. x 12° el.
Polarization: Vertical
Scheduling: TDMA with dynamic scheduling, TDD
Link encryption: AES+GCMP

Performance

Throughput: up to 2.3 Gbps single-direction
Range: 1 km+ (channel and rain zone dependent)

Hardware

Interfaces: 1 x 2.5G Ethernet, 1 x 1G Ethernet, 1 x DC input screw terminal
Input power: Passive PoE 38-52V (2- or 4-pair) or DC terminal; 48V 0.5A PoE adapter included
PoE out: 1G port, passive, 0.5A max (software controlled)
Power consumption: 17W (41W with PoE out)
Dimensions: 28 x 10.2 x 5.1 cm (11 x 4 x 2 in)
Weight: 695 g (24.5 oz)
Operating temperature: -30°C to +60°C
Mounting: Pole or wall via mounting backplate

Software

Networking: Transparent bridge, IPv4 & IPv6, VLAN passthrough & management VLAN
Max MTU: 7900 bytes
Management: Web UI, SNMP v2/v3 + traps, RESTful API
Tools: Ping watchdog, syslog, device discovery, speedtest, ping, traceroute, NTP, dual boot banks
Certifications: FCC (Z9W-TNA-301), IC (11468A-TNA301)

TNA-301 datasheet

Full technical specifications, dimensions and certifications for the Tachyon TNA-301. Plan your link with the Tachyon link calculator.

Download datasheet (PDF)

Buy Tachyon TNA-301 in UAE, Middle East & Africa

Xtream Vision Electronics Trading LLC is the official Tachyon Networks distributor for the UAE, Middle East and Africa. We supply the TNA-301 and the complete Tachyon 60 GHz range to WISPs, telecom operators, system integrators and enterprises in Dubai, Abu Dhabi, Sharjah, Riyadh, Jeddah, Muscat, Doha, Kuwait, Lusaka, Khartoum and beyond. Contact us for the latest TNA-301 price, stock availability and project discounts.

Product details

Brand	Tachyon Networks
Model	TNA-301
Series	TNA-300 60 GHz Radios
Type	Pure 60 GHz PTP / PTMP
Availability	In stock - UAE, GCC & Africa
Warranty	Manufacturer warranty
Supplied by	Xtream Vision Electronics Trading LLC, Dubai
Datasheet	PDF download

TNA-301 - FAQ

Where can I buy the Tachyon TNA-301 in Dubai or the UAE?

Xtream Vision Electronics Trading LLC is the official Tachyon Networks distributor in the UAE, Middle East and Africa. Contact us for TNA-301 price and availability.

Is the TNA-301 available in Saudi Arabia and Africa?

Yes. We supply the TNA-301 and other Tachyon TNA-300 60 GHz Radios products to the UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Zambia, Sudan and across Africa.

Do you provide support for the TNA-301?

Yes. Our engineers provide free pre-sales link planning, configuration guidance and after-sales technical support for the TNA-301.
