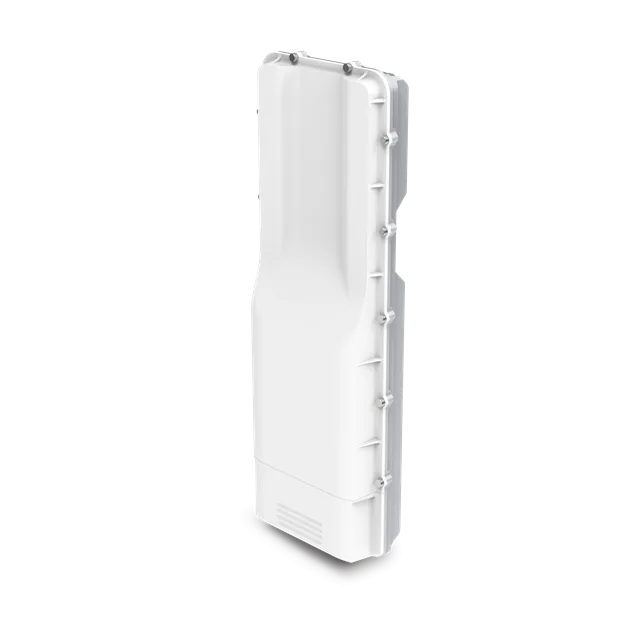

Tachyon TNA-302

Quick Install 60 GHz Beamforming Client (Station)

Price on request · project & reseller pricing available

The TNA-302 is the station (client) companion to the TNA-301 access point. Its 22 dBi phased-array antenna steers ±20° in azimuth and elevation, so it locks onto the AP with little to no manual aiming.

Use two TNA-302 units for a quick point-to-point link, or connect up to 32 TNA-302 subscribers to one TNA-301 for multi-gigabit point-to-multipoint broadband.

The 2.5G Ethernet port delivers up to 2.3 Gbps, while the 1G port with software-controlled PoE-out can power a camera or router, or act as an 'anyband' failover.

Request a quote Ask on WhatsApp

Genuine product with manufacturer warranty
Delivery across UAE, GCC & Africa
Free 60 GHz link planning & support

TNA-302 key features

Beamforming client

±20° auto-steering beam compensates for imperfect aiming and pole movement - no truck rolls after installation.

Multi-gigabit speed

Up to 2.3 Gbps single-direction through the 2.5G Ethernet port.

PoE out

Software-controlled passive PoE-out on the 1G port to power a camera, router or access point at the subscriber site.

Compatible with all TNA

Works with the TNA-301, TNA-303X, TNA-303L and TNA-305X - every TNA-300 series model is interoperable.

TNA-302 specifications

Radio

Default mode: Station (AP / station selectable in software)
Frequency: 57-71 GHz full band, channels 1-6 (half channels 1-11)
EIRP: 40 dBm (18 dBm TX power + 22 dBi antenna)
Antenna: 22 dBi phased array, ±20° azimuth, ±20° elevation steering
Beam size: 12° az. x 12° el.
Polarization: Vertical
Link encryption: AES+GCMP

Performance

Throughput: up to 2.3 Gbps single-direction
Range: 1 km+ (channel and rain zone dependent)

Hardware

Interfaces: 1 x 2.5G Ethernet, 1 x 1G Ethernet, 1 x DC input screw terminal
Input power: Passive PoE 38-52V or DC terminal; 48V 0.5A PoE adapter included
PoE out: 1G port, passive, 0.5A max
Power consumption: 17W (41W with PoE out)
Dimensions: 28 x 10.2 x 5.1 cm (11 x 4 x 2 in)
Weight: 695 g (24.5 oz)
Operating temperature: -30°C to +60°C

Software

Traffic shaping and DHCP snooping (Option 82, rogue DHCP blocking) in station mode
Management: Web UI, SNMP v2/v3 + traps, RESTful API
Certifications: FCC (Z9W-TNA-302), IC (11468A-TNA302)

TNA-302 datasheet

Full technical specifications, dimensions and certifications for the Tachyon TNA-302. Plan your link with the Tachyon link calculator.

Download datasheet (PDF)

Buy Tachyon TNA-302 in UAE, Middle East & Africa

Xtream Vision Electronics Trading LLC is the official Tachyon Networks distributor for the UAE, Middle East and Africa. We supply the TNA-302 and the complete Tachyon 60 GHz range to WISPs, telecom operators, system integrators and enterprises in Dubai, Abu Dhabi, Sharjah, Riyadh, Jeddah, Muscat, Doha, Kuwait, Lusaka, Khartoum and beyond. Contact us for the latest TNA-302 price, stock availability and project discounts.

Product details

Brand	Tachyon Networks
Model	TNA-302
Series	TNA-300 60 GHz Radios
Type	Pure 60 GHz PTP / PTMP
Availability	In stock - UAE, GCC & Africa
Warranty	Manufacturer warranty
Supplied by	Xtream Vision Electronics Trading LLC, Dubai
Datasheet	PDF download

TNA-302 - FAQ

Where can I buy the Tachyon TNA-302 in Dubai or the UAE?

Xtream Vision Electronics Trading LLC is the official Tachyon Networks distributor in the UAE, Middle East and Africa. Contact us for TNA-302 price and availability.

Is the TNA-302 available in Saudi Arabia and Africa?

Yes. We supply the TNA-302 and other Tachyon TNA-300 60 GHz Radios products to the UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Zambia, Sudan and across Africa.

Do you provide support for the TNA-302?

Yes. Our engineers provide free pre-sales link planning, configuration guidance and after-sales technical support for the TNA-302.
